Height x width x depth

2300mm×650(800、1000)×1500/1600mm

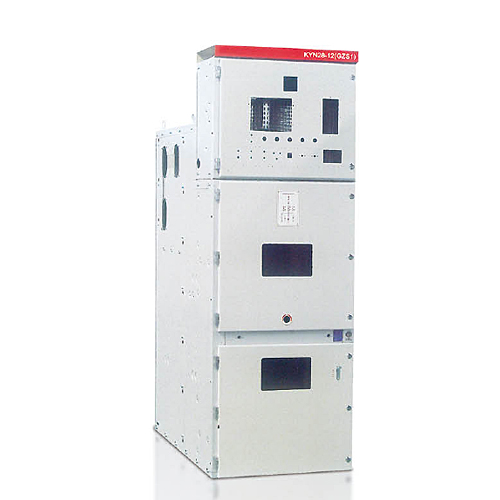

KYN28-12 Armoured removable AC metal enclosed switchgear is a complete set of indoor power distribution unit with three-phase AC 50Hz and rated voltage 12KV. As power plants, substations and industrial and mining enterprises to receive and distribute electric energy, and with the implementation of circuit control, protection and monitoring functions.

1. Simple and effective "five prevention" blocking to prevent misoperation;

2. Vs1-12 (ZN63A), VD4, ZN12, 3AH, VB2, VEP vacuum circuit breaker, VC7 vacuum contactor, etc.

3. It can be equipped with voltage transformer handcar, metering handcar, isolation handcar, fuse handcar, etc. Handcars of the same purpose have interchangeability;

4. Reliable wall installation and front maintenance of cabinet to reduce floor space;

5. Heaters can be installed in circuit breaker room and cable room respectively to prevent condensation and corrosion;

6. Abundant cable room space, can connect multiple cables;

7. The protection class of the shell is IP4X, the door of the handcar room is opened and the protection class of each compartment is IP2X;

8. Material can be made of galvanized sheet or aluminized zinc coated sheet.
